WUHAN BESTA CONSTRUCTION MACHINERY CO., LTD Best Products, Best Service, Best Value
8 Years
| Ask Lasest Price | |
| Brand Name : | BESTA |
| Model Number : | EN38/EN45 |
| Certification : | CCC, ISO9001 |
| Price : | usd 120-150 per pieces |
| Payment Terms : | L/C, T/T, D/P |
| Supply Ability : | 1000 pieces per month |
| Delivery Time : | 30 days |
Introduction:

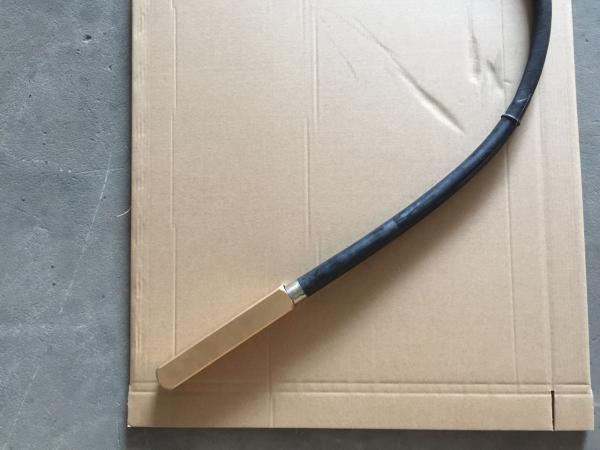

High frequency concrete vibrator is used in bridge,dam,large building, which is made of high quality concrete, the concrete vibrator can reduce solidification defects.
Main Features:
1.Housing resistance 5times higher than that required by the regulations.
| Model | EN35 | EN38 | EN45 | EN50 | EN60 | ZP38 | ZP45 | |||
| Engine | Electric 1.1-2.3kw or Fuel Engine 3-5.Gasoline 5HP | |||||||||
| Dia.of head(mm) | 36 | 38 | 47 | 51 | 68 | 38 | 45 | |||
| Frequency(Hz) | 300 | 300 | 300 | 300 | 300 | 150 | 150 | |||
| Amplitude(mm) | 1.15 | 1.18 | 1.2 | 1.21 | 1.32 | 1.2 | 1.25 | |||
| Dia.of Hose | outer | 30 | 30 | 32 | 36 | 46/36 | 30 | 36 | ||
| (mm) | inner | 16 | 16 | 18 | 20 | 20 | 16 | 18 | ||
| Dia.of Shaft(mm) | 10 | 10 | 13 | 13 | 13 | 10 | 13 | |||
|
|
