| Brand Name : | BESTA |
| Model Number : | ZV |
| Certification : | CCC, ISO9001 |
| Price : | usd 20-50 per pieces |
| Supply Ability : | 1000 pieces per month |
| Delivery Time : | 30 days |
Functional Description:
Apply to compact concrete, make it bind togeter tight and eliminat concrete phenomena such us honeycomb, further increase its strength to ensure the quality of concrete.
Main Features:

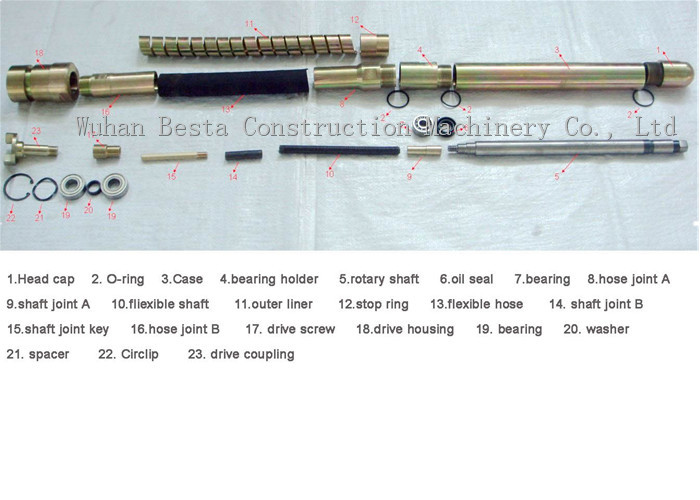

1. The tip of vibrator, which forged by high-quality 40 Cr-alloy steel with Salt bath furnace quench technology, mostly improving the mechanical capacity up to hardness of HRC52-58 degree;
2. Leeving: Use 45# carbon steel, handled by high-frenquency quenching and the hardness is up to HRC50~52 degree
3. Rolling element: handled by high-frenquency quench with high grade 40 Cr-alloy steel
4. Flexible pipe: Use high-quality native rubber and 65# Mn alloy spring steel and the thickness around 1.8MM.
| Model | ZV25 | ZV35 | ZV38 | ZV45 | ZV50 | ZV70 | ZP38 | ZP45 | ZMC25-1M | ZMC35-1M | |
| Engine | Electric 1.1-1.5kw or Fuel Engine 3-5.5HP | Handheld 800w | |||||||||
| Dia.of head(mm) | 26 | 36 | 38 | 47 | 51 | 68 | 38 | 45 | 25 | 35 | |
| Frequency(Hz) | 230 | 200 | 200 | 200 | 200 | 200 | 150 | 150 | 260 | 300 | |
| Amplitude(mm) | 1.1 | 1.15 | 1.18 | 1.2 | 1.21 | 1.32 | 1.2 | 1.25 | 0.7 | 0.8 | |
| Dia.of Hose | outer | 24 | 30 | 30 | 32 | 36 | 46/36 | 30 | 36 | 24 | 30 |
| (mm) | inner | 13 | 16 | 16 | 18 | 20 | 20 | 16 | 18 | 13 | 16 |
| Dia.of Shaft(mm) | 8 | 10 | 10 | 13 | 13 | 13 | 10 | 13 | 8 | 10 | |
|
|
