WUHAN BESTA CONSTRUCTION MACHINERY CO., LTD Best Products, Best Service, Best Value
8 Years
| Ask Lasest Price | |
| Brand Name : | BESTA |
| Model Number : | ZV |
| Certification : | CCC, ISO9001 |
| Price : | usd 20-50 per pieces |
| Supply Ability : | 1000 pieces per month |
| Delivery Time : | 30 days |
Details
Vibrating Head

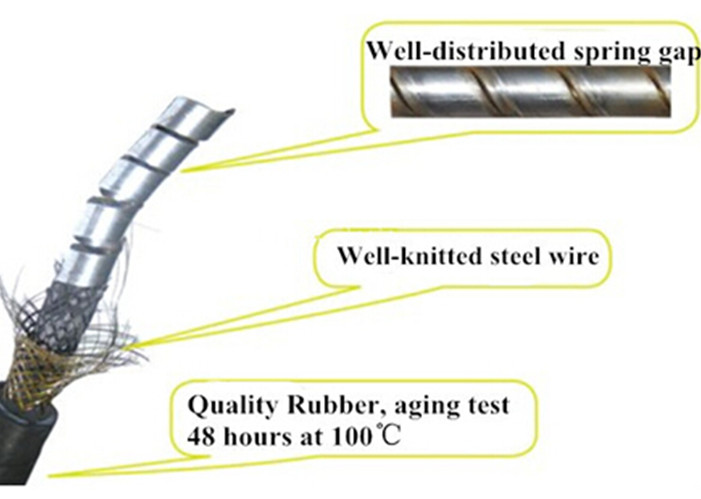

Flexible Shaft
Features of concrete vibrator
1. Stable operation.
2. Good mechanical performance.
3. Low noise.
4.Good anti-wear performance.
5.heads and shafts can be combined and rapidly exchanged to match the right equipment for the job.
6.Powered by 4-stroke gasoline engine, easy to start,low noise operation,low mintenance and reduced fuel consumption .
| Model | ZV25 | ZV35 | ZV38 | ZV45 | ZV50 | ZV70 | ZP38 | ZP45 | ZMC25-1M | ZMC35-1M | |
| Engine | Electric 1.1-1.5kw or Fuel Engine 3-5.5HP | Handheld 800w | |||||||||
| Dia.of head(mm) | 26 | 36 | 38 | 47 | 51 | 68 | 38 | 45 | 25 | 35 | |
| Frequency(Hz) | 230 | 200 | 200 | 200 | 200 | 200 | 150 | 150 | 260 | 300 | |
| Amplitude(mm) | 1.1 | 1.15 | 1.18 | 1.2 | 1.21 | 1.32 | 1.2 | 1.25 | 0.7 | 0.8 | |
| Dia.of Hose | outer | 24 | 30 | 30 | 32 | 36 | 46/36 | 30 | 36 | 24 | 30 |
| (mm) | inner | 13 | 16 | 16 | 18 | 20 | 20 | 16 | 18 | 13 | 16 |
| Dia.of Shaft(mm) | 8 | 10 | 10 | 13 | 13 | 13 | 10 | 13 | 8 | 10 | |
|
|
