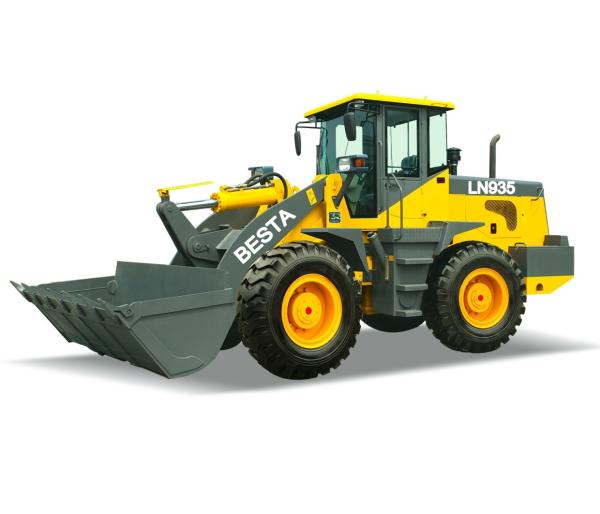

    Heavy Duty 3Ton Rated Load 4WD Wheel Loader 9800KG ISO9001 Certification

    Ask Lasest Price
    Brand Name : BESTA
    Model Number : ZL30 (LN935,LN936,LN938)
    Certification : ISO9001
    Price : USD 20000-30000 per unit
    Supply Ability : 20 units per month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    Heavy Duty 3Ton Rated Load 4WD Wheel Loader 9800KG ISO9001 Certification

    Designed in Strong structure, Excellent performance, Experienced drive parts,Comfortable and safe driving space.

    Features:

    *Weichai DEUTZ WP6G125E23 diesel engine, higher power and reliability;
    *Hangzhou Advance Gear Group double-turbine hydraulic torque converter with reasonable structures and higher reliability make the loader obtaining more drawing force;
    *Gear-shift with 2 forward and 1 reverse controlled by flexible shaft eases much labor;
    *Single lever pilot control system, comfortable and flexible operation;
    *Single pump, split flow working hydraulic system realizes the excellent fuel economy;
    *Double sealed hydraulic pipeline joints with 24° awl and 〇 ring of international standard, avoided oil leak- age obviously;
    *Fully hydraulic load sensing steering system, flexible operation and higher reliability;
    *Air over hydraulic disks on four wheel brakes;
    *Large space articulated frames make operation and traveling stable;
    *Working device with automatically leveling ability at high position;
    *Bucket articulated points take sealed, lubricated, dust-proof layers, which owns good durability;
    *Integral, luxury instrument board;
    *New, luxury cabin.

    Technical Specification:

    Type ZL10ZL15ZL20ZL30ZL50
    Rated Loadkg10001500200030005000
    Bucket Capacitym30.320.61.21.83
    Weightkg260029005500980016500
    Max. Breakout ForcekN172655120175
    Gradeability°25303030
    Raising Times655.56.5
    Lowering Times3445
    Total Cycling Times1099.512
    Dump Heightmm2700275030503100
    Dump Reachmm80092011051285
    Dimensioncm540*194*252540*194*256469*165*266699*242*300811*307*340
    Wheel Basemm18801880235026003200
    Trackmm13401340150018002250
    Ground Clearancemm260260320410500
    Min. Turning Radiusmm35003500460051606288
    Max. Speedkm/h3030303536
    Engine Model JD28FAW 4DW81-37LR4018GYC6B125-T10WD10G220E21
    Rated PowerHP284581125220
    Rated Speedr/min23002300240022002200
    Power Shift CVT
    Drive Type Four-wheel drive
