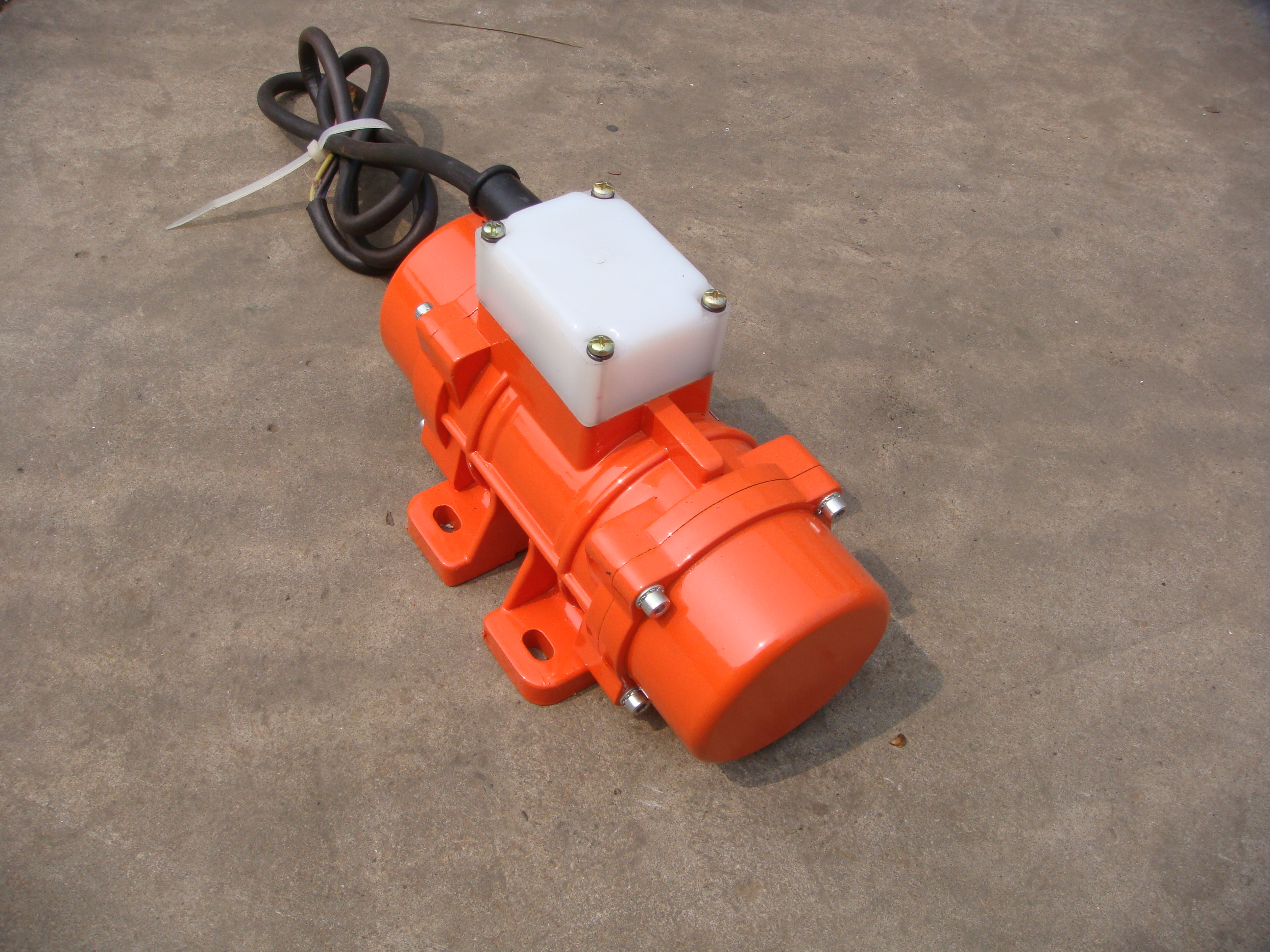

Brand Name : | BESTA |
Model Number : | ZFT9 |
Certification : | CCC, ISO9001 |
Price : | USD 25-100 per unit |
Payment Terms : | D/P, L/C, T/T |
Supply Ability : | 1000 units per month |
Delivery Time : | 30 days |
Application:
Vibrating concrete on surface for curd densely;
often used in concrete Mould or Vibration scale.
As attachment on other machine, for picking up materials, prevent blockage;
Features:
* Aluminium alloy Casing, for better thermal diffusivity, which
insure stability;
*Copper wire coil for better electric conductibility;
*Adjustable vibrating force 0-1kN, to fit more needs of user;
*Optional plate and bolt for users inquiry.
*Modifiable design, made it working in 220-410v, and 50Hz or 60Hz.
Model | Power Supply | Output Power | Vibrating Amplitude | Centrifugal Force | Current | Weight |
V/Hz | kW | mm | kN | A | kg | |
ZFT9 | 380/50 | 0.09 | 2.1 | 1-0 | 0.19 | 4.4 |
ZFT18 | 380/50 | 0.18 | 2.3 | 2-0 | 0.37 | 7.5 |
ZFT25 | 380/50 | 0.25 | 1.8 | 3-0 | 0.67 | 12 |
![]() |
