WUHAN BESTA CONSTRUCTION MACHINERY CO., LTD Best Products, Best Service, Best Value
8 Years
| Ask Lasest Price | |
| Brand Name : | BESTA |
| Model Number : | ZF300 |
| Certification : | ISO9001, CCC |
| Price : | USD 25-80 per unit |
| Supply Ability : | 500 units per month |
| Delivery Time : | 30 days |
Advantage:
1. Motor coil is made of copper wire.
2. Voltage and phase can be customized by client
3. Cast iron body for more strong and stable.
4. Powerful motor for high efficient.
Application:

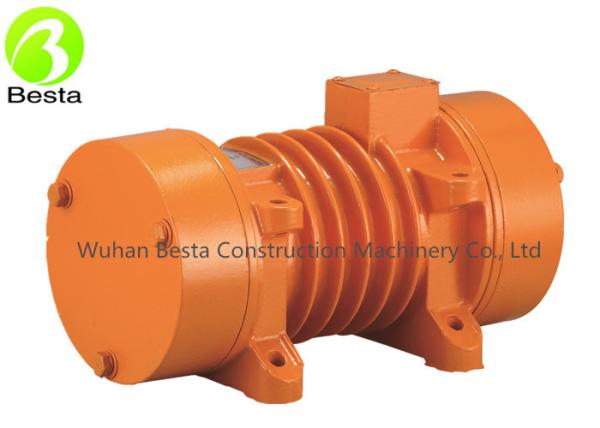

As vibrating motor, used in industrial sievesis one kind of special asychronous motor which combined the power source and vibration source together.It is new universially energy saving vibration exciter for all kinds of vibration equipment exciter for all kind of vibration equipment like vibration screen, vibration feeder, crusher, vibration conveyor etc.
As concrete Vibrator, need to fitting the plate for vibrating concrte, make the concrete solidified stable.
| Model | Power Supply | Output Power | Vibrating Amplitude | Centrifugal Force | Current | Weight |
| V/Hz | kW | mm | kN | A | kg | |
| ZFT3 | 380/50 | 0.03 | 1.5 | 0.3-0 | 0.15 | 4.4 |
| ZFT9 | 380/50 | 0.09 | 2.1 | 1-0 | 0.19 | 4.4 |
| ZF18 | 380/50 | 0.18 | 2.3 | 1 | 0.37 | 7.5 |
| ZF25 | 380/50 | 0.25 | 1.8 | 1.8 | 0.67 | 12 |
| ZF55 | 380/50 | 0.55 | 1.64 | 4.15 | 1.3 | 21.5 |
| ZF80 | 380/50 | 0.8 | 2 | 2.6 | 1.74 | 27 |
| ZF110 | 380/50 | 1.1 | 2 | 4.3 | 2.52 | 27 |
| ZF150 | 380/50 | 1.5 | 2.4 | 8.3 | 3.18 | 38 |
| ZF220 | 380/50 | 2.2 | 2.2 | 10 | 4.6 | 46 |
| ZF300 | 380/50 | 3 | 2.2 | 14 | 6.4 | 57 |
|
|
